Cap Lining Machines

Our cap lining machines equipment inserts hermetic seals in caps from reel liner or pre-cut liners.

We have different models of machines that adapt to every production needs, such as: Cutting Power, Production Rate, Different Cap Sizes and Shapes.

AUTING Cap Lining Machines are appropriate to operate in production lines at a rate of 4000 to 60000 caps per hour and are capable to process caps from 8 to 140 mm diameter.

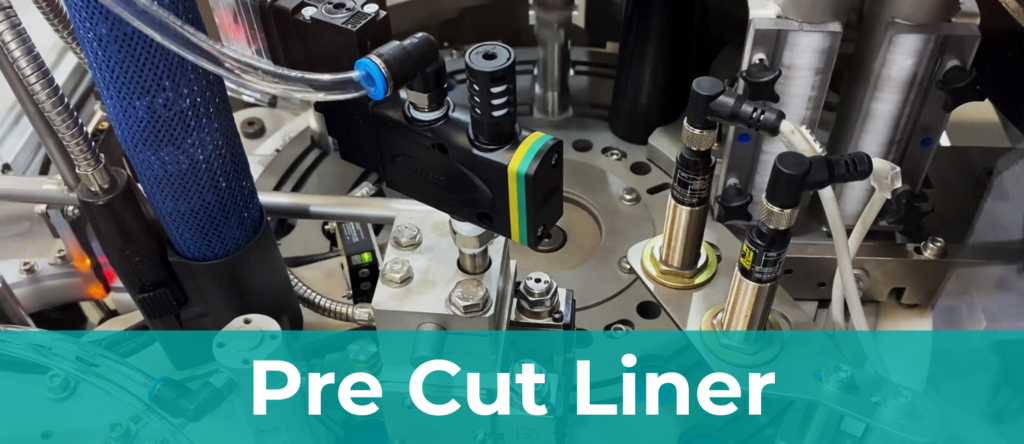

SEALS PRE-CUT THROUGH ROTARY CUTTING SYSTEM

This method, usually preferred for polyethylene seals which are inserted in beverage caps, guarantees a cap free from polyethylene particles. Such particles are generated in the cutting process. It is important to consider that the amount of debris generated is higher in low density or low quality liners

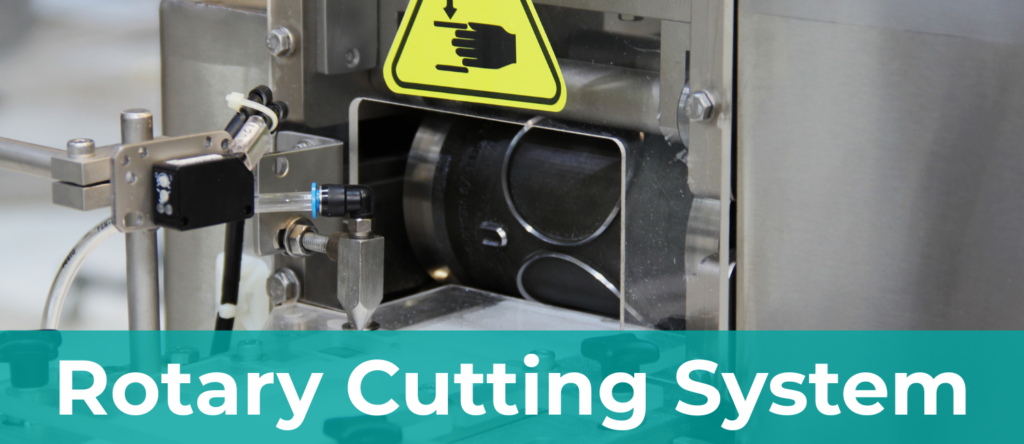

This rotary cutting system eliminates almost 100% of the dust since it uses a compression type of cut instead of the traditional cutting tool.

The seals are pre-cut on the liner band in the rotary cut module outside the lining module. After the pre-cut, the band passes through an ionization and dust remover tunnel, heading to the cap lining module where the cap is processed. In this way, we prevent any particle in the cutting process from getting in contact with the cap.

The tooling changes in both options are simple, fast and precise. The machine operator will perform the changeover in no more than 30 minutes.

GENERAL CHARACTERISTICS - MACHINES FOR PROCESSING SEALS FOR BOTTLES

Auting Lining machines have all the control elements to guarantee 100% non-defective pieces in your production. We are also specialists in handling high quality closures in which the lack of scratches is a key requirement.

Our equipment not only meets the strictest quality standards but is also designed for easy use and low maintenance.

BENEFITS OF USING CAP LINING MACHINES

Cap Lining machines for processing seals for bottles offer a number of essential functions and benefits, including:

• Authenticate product integrity. The presence of a well-sealed cap liner acts as a guarantee that a package has not been opened or contaminated after the filling and closing processes. Liners can also display the date of sealing or expiration date.
• Increase consumer confidence. When consumers see a completely sealed package, they are assured that the product is fresh and uncontaminated. In the case of liquid and semi-liquid products, the seal also prevents the product from soiling the inside of the lid, which further enhances the consumer experience.
• Graphic communication and promotion. Lid liners can be colorful, attractive and promotional. Manufacturers can print logos, fun facts, coupons and other text or image selections on top of lid liners to further engage the public after purchase.
• Freshness preservation. The physical barrier of a lid liner, especially if it is completely sealed to the edge of the container, stops or slows the oxidation process, allowing the product to remain fresh longer.
• Leak prevention. Lid liners prevent leakage and spillage during transportation and commercial storage to ensure that products are fully intact when distributed to consumers.
• Preventing product contamination. Lid liners prevent contaminants such as moisture, dust, gaseous chemicals and other unwanted substances from degrading or mixing with the product.
